| Item | Technical Data |
|---|---|
| Application | Tile Roof |
| Material | SUS304/AL6005-T5 |
| Surface Treatment | Anodized |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.5KN/ m2 |
| Standard | ASCE_7-10,EN1090,JIS8955:2017,IBC2009,AS/NZS1170.2:2021 |

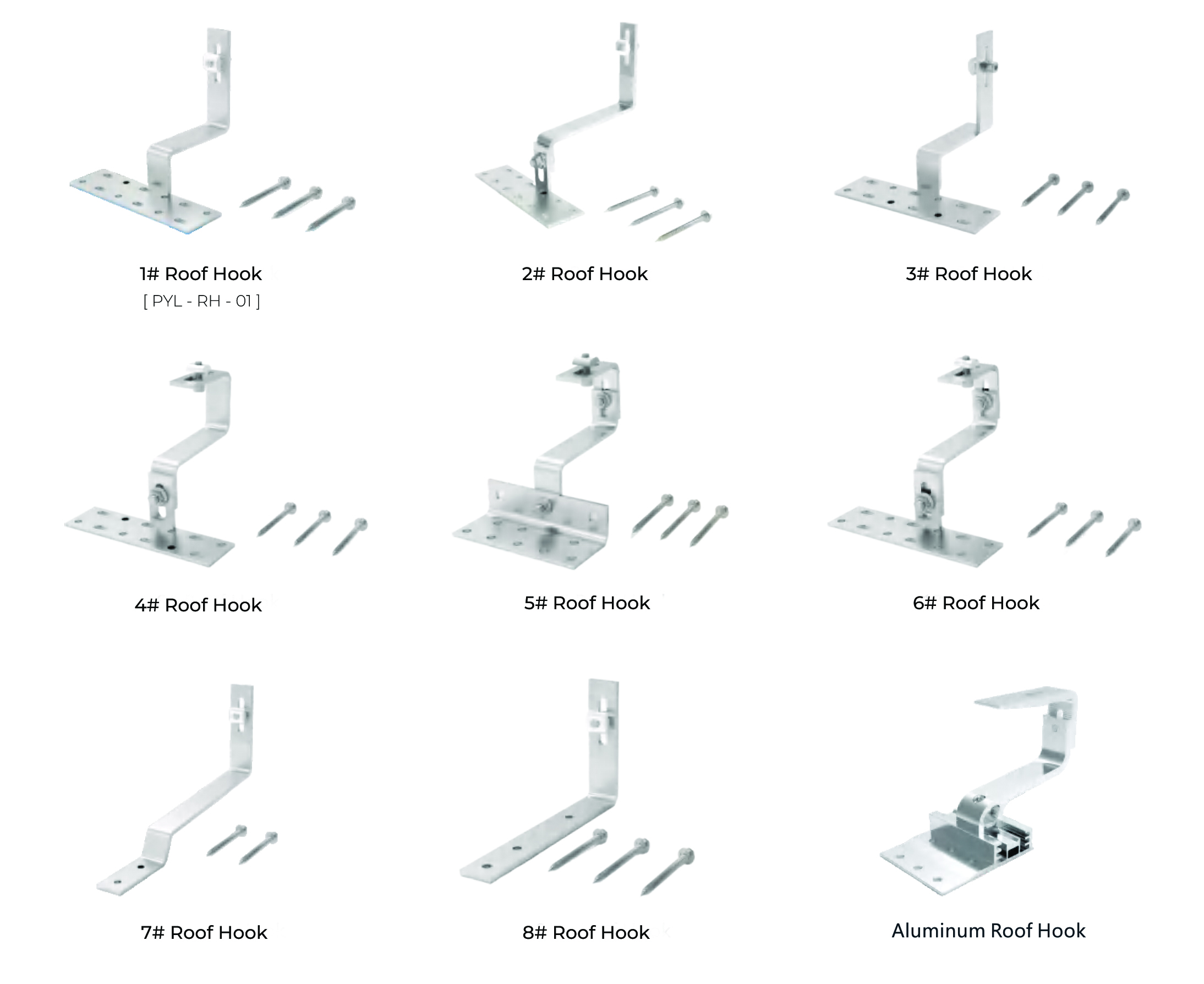

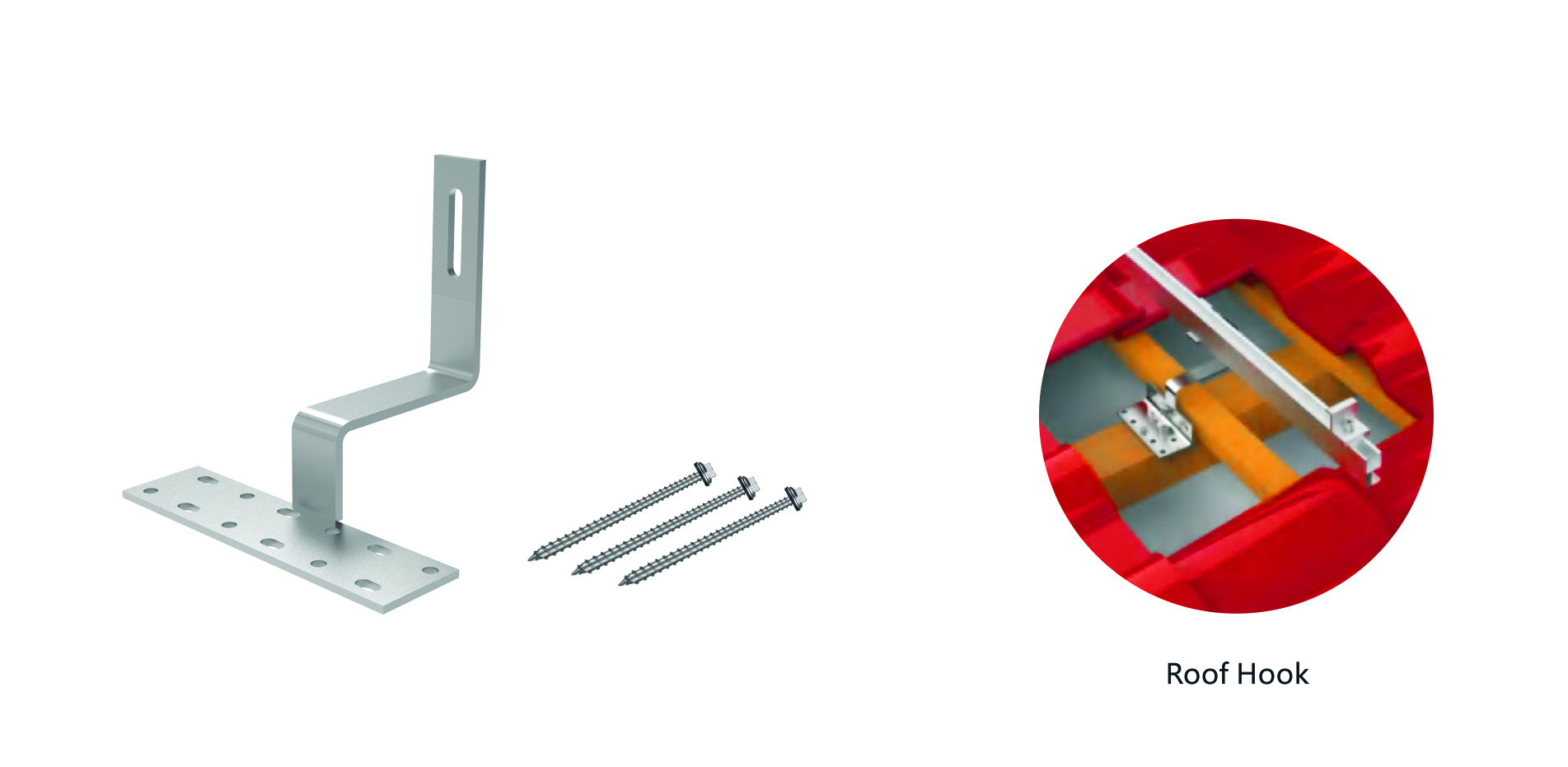

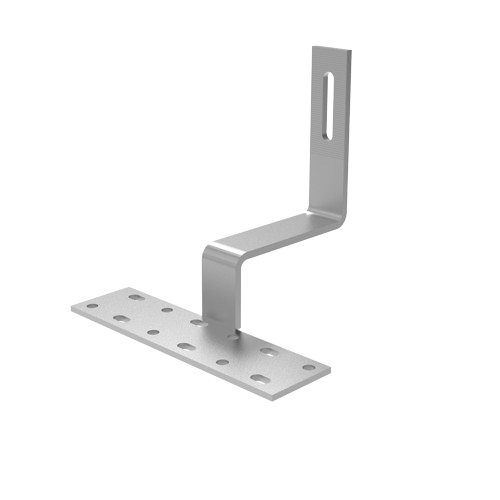

PYLAR tile roof hooks is perfect solution for installing solar systems on roofs that use flat interlocking tile or concrete tile. no tile augmentation is necessary to achieve a low profile install that lays flat.
| Item | Technical Data |
|---|---|
| Application | Metal Roof Solar |
| Material | AL6005-T5&SUS304 |
| Surface Treatment | Anodized |
| Wind Load | ≤60m/s |
| Snow Load | ≤1.5KN/ m2 |
| Standard | ASCE_7-10,EN1090,JIS8955:2017,IBC2009,AS/NZS1170.2:2021 |

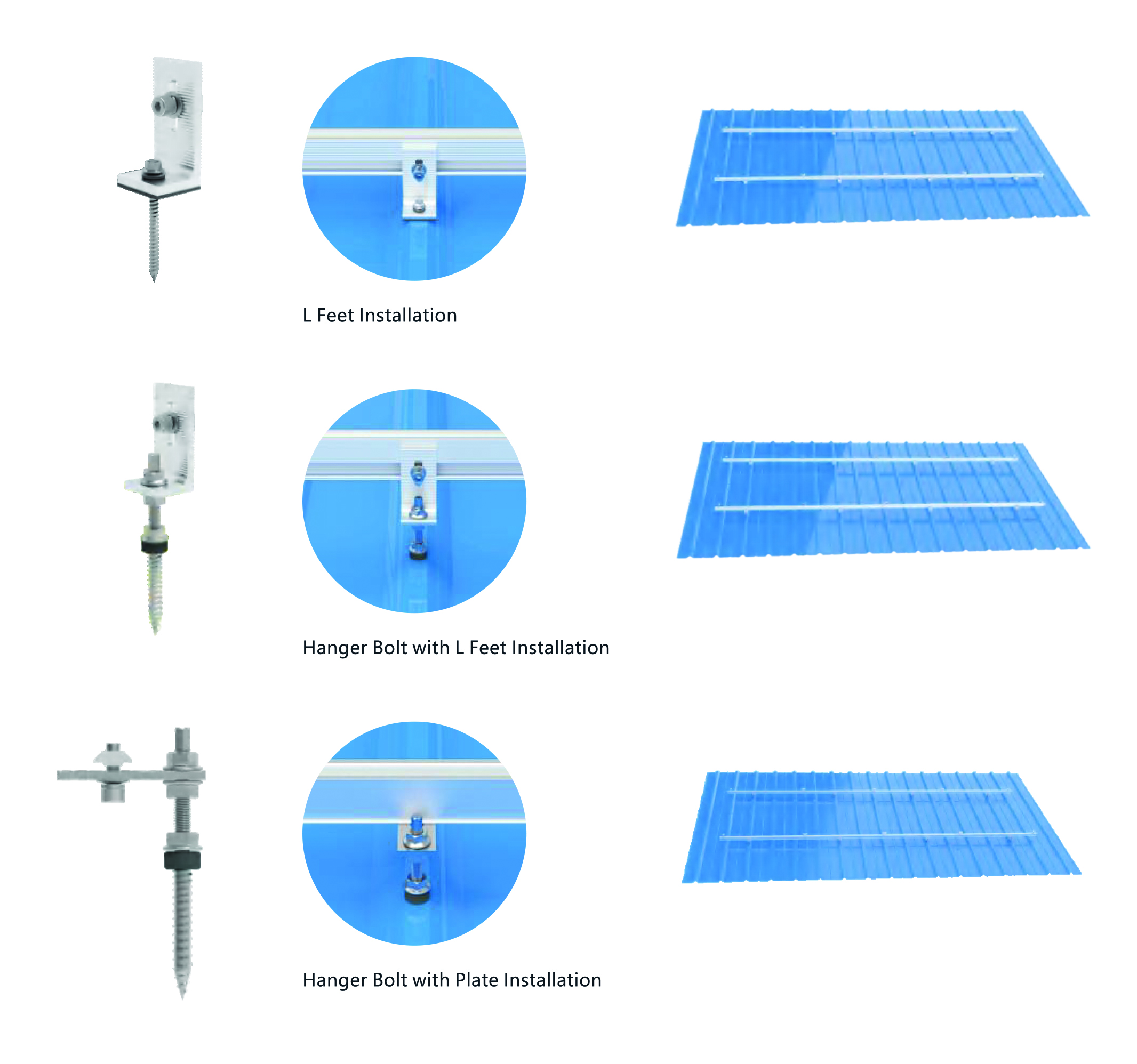

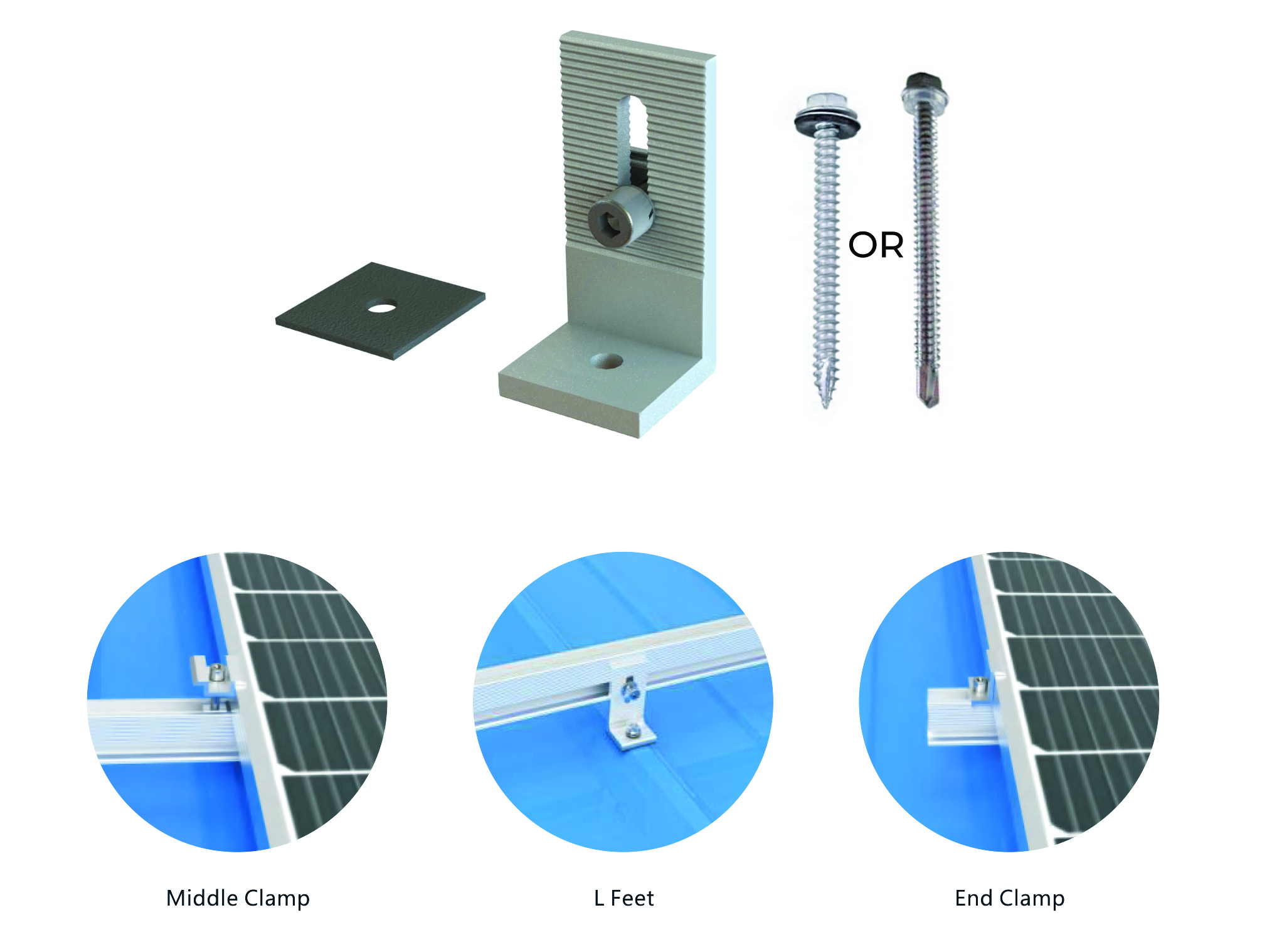

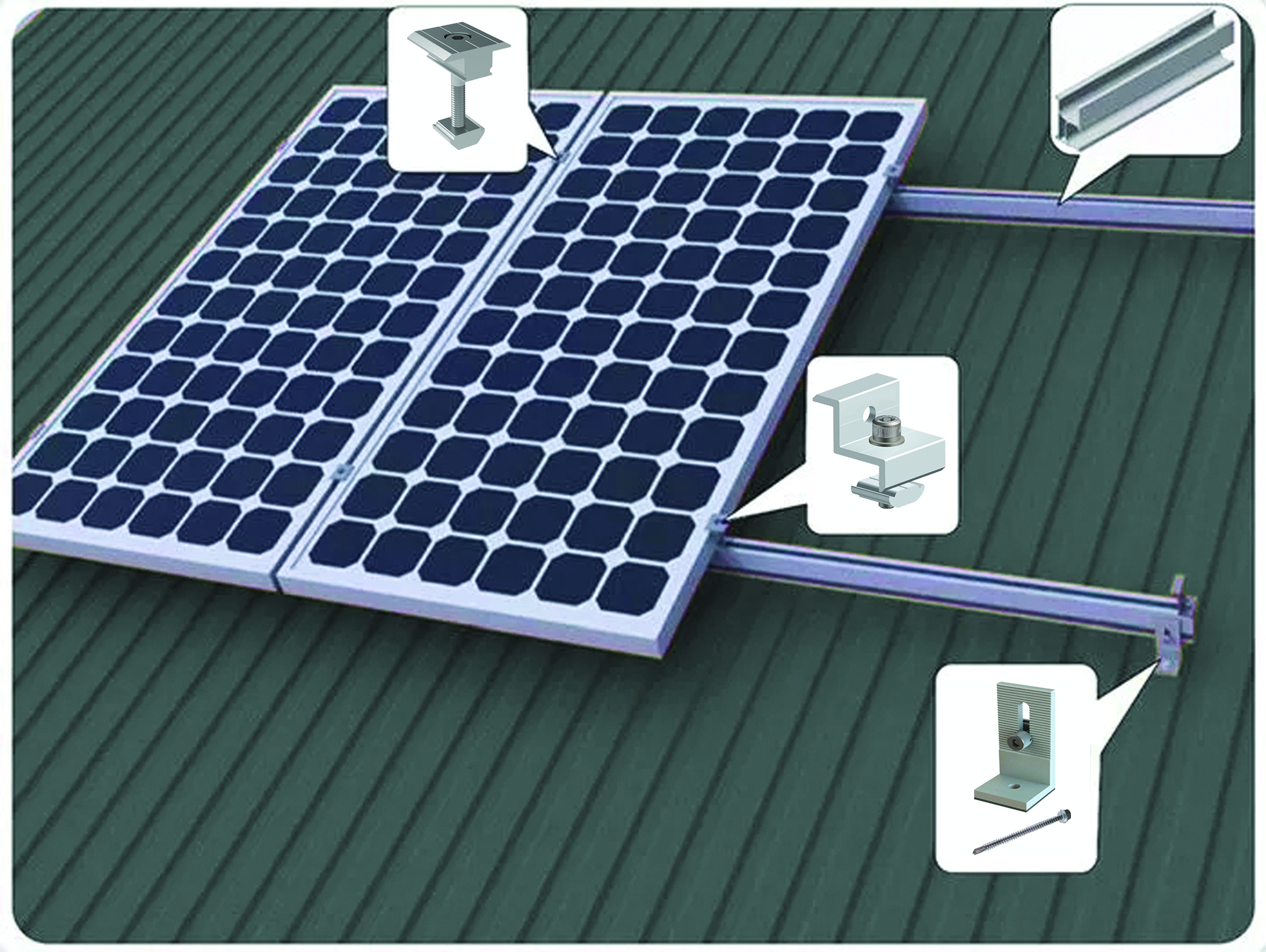

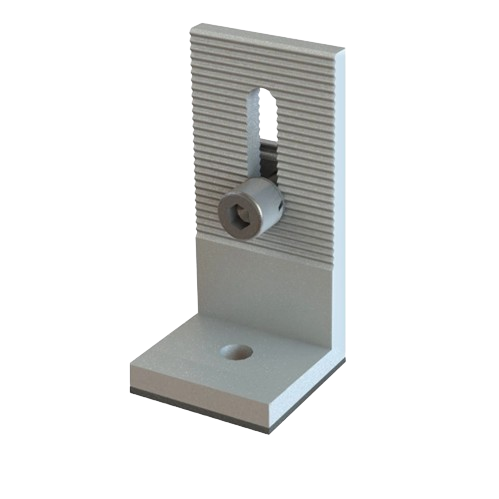

The metal roof mounting system is suitable for roofing with corrugated sheet metal, and trapezoidal metal sheets. PYLAR L Feet is available for roof options, making installation faster, more competitive, and more reliable.

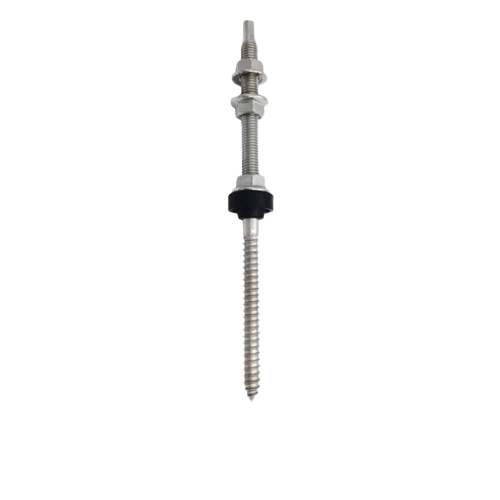

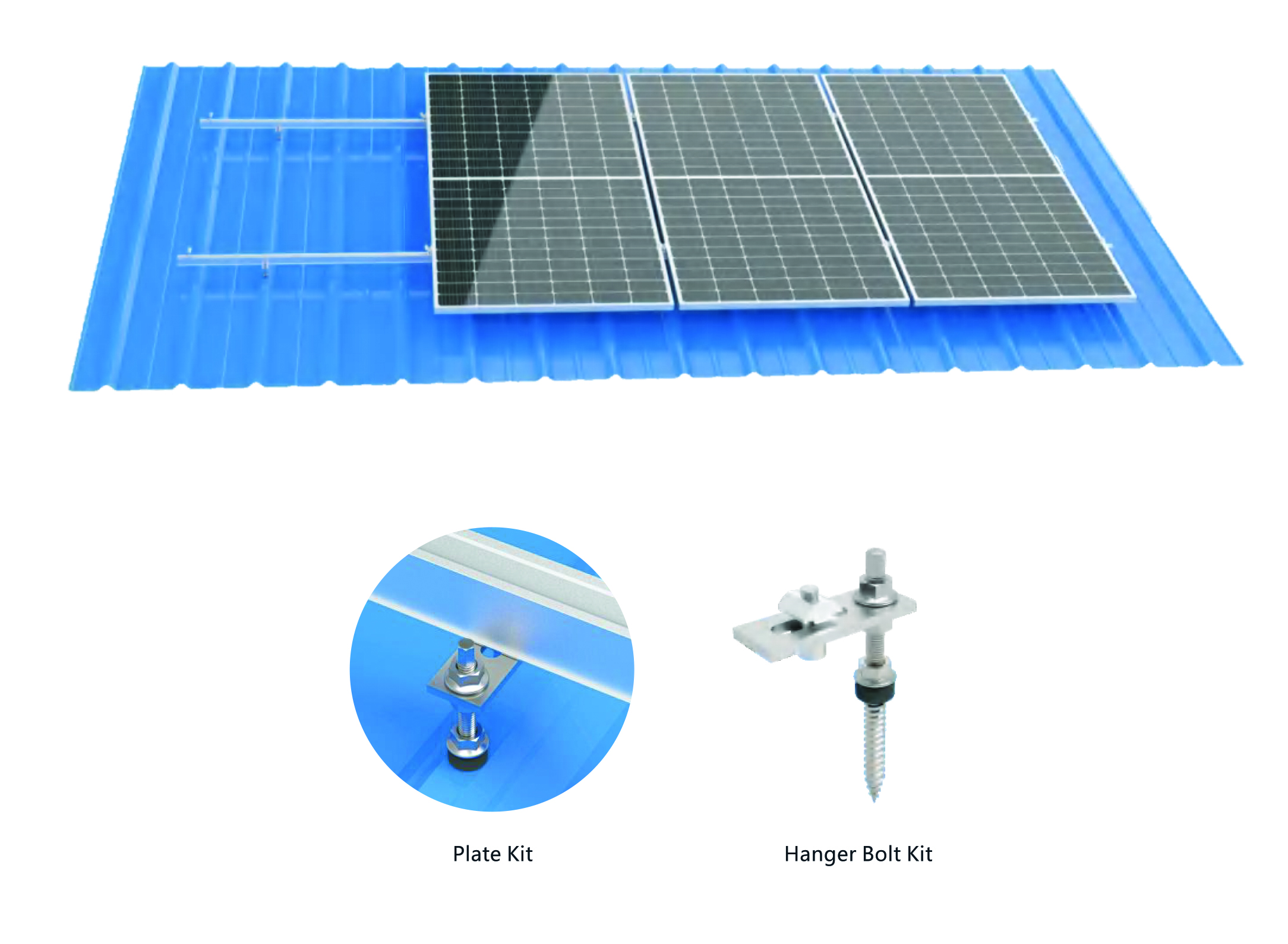

PYLAR hanger bolt is a mounting solution for trapezoidal roof. PYLAR hanger bolt can be used with aluminium L Feet or stainless steel plate on solar metal roof installation.
